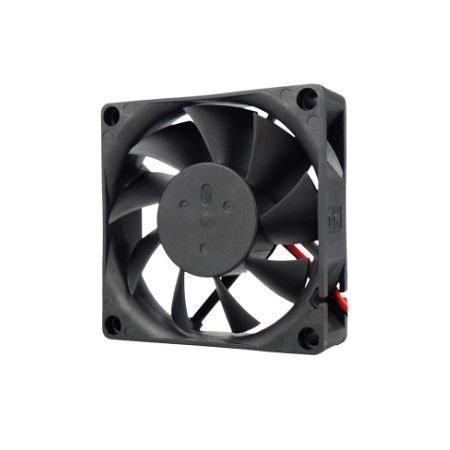

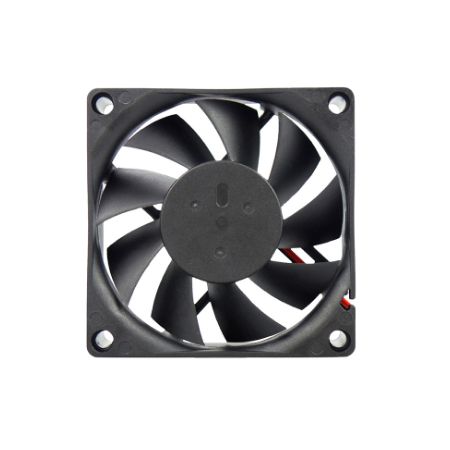

DC 70*70*25mm refrigeratio fan

Dongguan Huatai officina est productio professionalis et investigatio et progressus ac / dc refrigerationis fabricatores, plus quam decem annos experientiae in productione habemus, 70* 70mm Camera Fan velocitas alta in electronicis, carris, video, retroversis adhiberi debet; audio, ostentationem velum et alia industria instrumenta, nostra fabricatio fans cum bona refrigeratione perficiendi, summus aer volubilis, super quiete, humilis strepitus, industria salutaris et tutelae tutelae operandi, pretium humile, altum qualitas, breve partus tempus, etiam potest OEM/ODM ac convivam parametri morem.

Grata te ad officinam nostram et elige et eme 70*70 cameram fans altae velocitatis, meliores fructus et operas tibi afferat, uteris quies certa, nos stricte producti qualitatem inspectionem habemus, tibi ubertatem qualitatem tribuimus, societatem altam famam spondemus; ventilabrum nostrum duos annos post venditionesque warantum gaudebit, te praestabit cum optimis post-ventionibus servitium, officinas huatai exspecto ut cooperari cum te.

· Typus: duplex Ball portantes / manica portantes

·Vesti folium materia: PBT

·aestimavit voltage: 12V, 24V, 48V

· Power rating: 1.80-4.80W

· Quantitas aeris: 23.07-35.03CFM

· Pressura Venti: 0.13-0.28Inch-H2O

·Opus temperatus: -10℃~+70℃

· Volo: 3000-4500RPM

· Vox: 27.2-38.2dB-A

·Vita: 300000~70000hrs

· Pondus: 52.0g

· Testimonium: UL, TUV, RoHS, CE

Materia

Artus: Plastic(UL94V-0)

Impeller: Plastic(UL94V-0)

Filum plumbeum: UL1571AWG#28 vel aequivalens (+) Rubrum,(-) Black

Expectata Vita:  Ball Ferens 70,000hrs(40*C)

Sleeve supportantes 30,000hrs (40C)

Temperature Range: Operating Temperature-10°C~70℃(Non-condensatione)

Repono Temperature-40*C~70℃(Non-condensatione)

Salus Signa: UL/TUV/ROHS/CE

DC Specials Fan: RD.FG, IP54, PWM

DC 70*70*15mm refrigeratio fan

· Typus: duplex Ball portantes / manica portantes

·Vesti folium materia: PBT

·aestimavit voltage: 12V.24V

· Power rating: 2.4-6.00W

· Quantitas aeris: 24.13-36.47CFM

· Pressura Venti: 0.13-0.28Inch-H2O

·Opus temperatus: -10℃~+70℃

· Celeritas: 3000-5000RPM

· Vox: 20.70-35.5dB-A

·Vita: 300000~70000hrs

· Pondus: 48.0g

· Testimonium: UL, TUV, RoHS, CE

Materia

Artus: Plastic(UL94V-0)

Impeller: Plastic(UL94V-0)

Filum plumbeum: UL1571AWG#28 vel aequivalens (+) Rubrum,(-) Black

Expectata Vita: Ball Ferens 70,000hrs (XL * C)

Sleeve supportantes 30,000hrs (40C)

Temperature Range: Operating Temperature-10°C~70℃(Non-condensatione)

Repono Temperature-40*C~70℃(Non-condensatione)

Salus Signa: UL/TUV/ROHS/CE

DC Specials Fan: RD.FG, IP54, PWM
